Bridge++  Ver. 1.1.x
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Pages
Public Member Functions | Protected Attributes | List of all members
Force Class Referenceabstract

Base class of fermion force calculation. More...

#include <force.h>

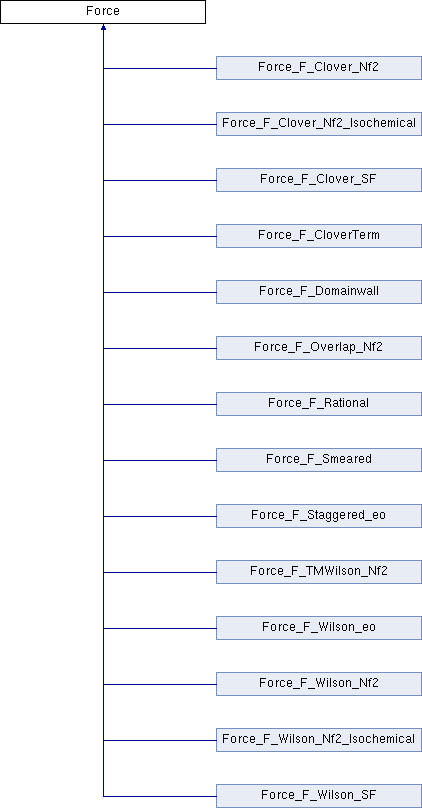

Inheritance diagram for Force:
Force_F_Clover_Nf2 Force_F_Clover_Nf2_Isochemical Force_F_Clover_SF Force_F_CloverTerm Force_F_Domainwall Force_F_Overlap_Nf2 Force_F_Rational Force_F_Smeared Force_F_Staggered_eo Force_F_TMWilson_Nf2 Force_F_Wilson_eo Force_F_Wilson_Nf2 Force_F_Wilson_Nf2_Isochemical Force_F_Wilson_SF

Public Member Functions

 Force ()

virtual ~Force ()

virtual void set_parameters (const Parameters &)=0

void set_parameter_verboselevel (const Bridge::VerboseLevel vl)

virtual void set_config (Field *)=0

virtual void set_mode (std::string mode)
 in Force, setting the mode is optional when H is nonhermitian. More...

virtual Field force_core (const Field &)=0

virtual Field force_udiv (const Field &)=0

virtual Field force_core1 (const Field &, const Field &)

virtual Field force_udiv1 (const Field &, const Field &)


Protected Attributes

Bridge::VerboseLevel m_vl


Detailed Description

Base class of fermion force calculation.

This class defines the interface of fermion force calculation. force_udiv() and force_udiv1() are used to recursively determine the smeared fermion force. [28 Dec 2011 H.Matsufuru] set_mode() is added. This is for the cases when the force calculation is nonhermitian. [18 Jan 2012 H.Matsufuru]

Definition at line 33 of file force.h.

Constructor & Destructor Documentation

Force::Force ( )
inline

Definition at line 37 of file force.h.

virtual Force::~Force ( )
inlinevirtual

Definition at line 40 of file force.h.

Member Function Documentation

virtual Field Force::force_core ( const Field &  )
pure virtual

Implemented in Force_F_Clover_Nf2_Isochemical, Force_F_Clover_SF, Force_F_Clover_Nf2, Force_F_Overlap_Nf2, Force_F_CloverTerm, Force_F_Wilson_eo, Force_F_Wilson_Nf2_Isochemical, Force_F_TMWilson_Nf2, Force_F_Wilson_SF, Force_F_Wilson_Nf2, Force_F_Domainwall, Force_F_Rational, Force_F_Staggered_eo, and Force_F_Smeared.

virtual Field Force::force_core1 ( const Field &  ,
const Field &
)
inlinevirtual

Reimplemented in Force_F_Clover_Nf2_Isochemical, Force_F_Clover_SF, Force_F_Wilson_eo, Force_F_Clover_Nf2, Force_F_CloverTerm, Force_F_Wilson_Nf2_Isochemical, Force_F_TMWilson_Nf2, Force_F_Wilson_SF, Force_F_Wilson_Nf2, and Force_F_Smeared.

Definition at line 57 of file force.h.

virtual Field Force::force_udiv ( const Field &  )
pure virtual

Implemented in Force_F_Clover_Nf2_Isochemical, Force_F_Clover_SF, Force_F_Clover_Nf2, Force_F_CloverTerm, Force_F_Overlap_Nf2, Force_F_Wilson_eo, Force_F_Wilson_Nf2_Isochemical, Force_F_TMWilson_Nf2, Force_F_Wilson_Nf2, Force_F_Wilson_SF, Force_F_Domainwall, Force_F_Rational, Force_F_Staggered_eo, and Force_F_Smeared.

virtual Field Force::force_udiv1 ( const Field &  ,
const Field &
)
inlinevirtual

Reimplemented in Force_F_Clover_Nf2_Isochemical, Force_F_Clover_SF, Force_F_Clover_Nf2, Force_F_Wilson_eo, Force_F_CloverTerm, Force_F_Wilson_Nf2_Isochemical, Force_F_TMWilson_Nf2, Force_F_Wilson_SF, Force_F_Wilson_Nf2, Force_F_Domainwall, and Force_F_Smeared.

Definition at line 58 of file force.h.

virtual void Force::set_config ( Field *  )
pure virtual

Implemented in Force_F_Clover_Nf2_Isochemical, Force_F_Clover_SF, Force_F_Clover_Nf2, Force_F_Overlap_Nf2, Force_F_CloverTerm, Force_F_Wilson_eo, Force_F_TMWilson_Nf2, Force_F_Wilson_Nf2_Isochemical, Force_F_Wilson_SF, Force_F_Wilson_Nf2, Force_F_Domainwall, Force_F_Rational, Force_F_Staggered_eo, and Force_F_Smeared.

virtual void Force::set_mode ( std::string  mode)
inlinevirtual

in Force, setting the mode is optional when H is nonhermitian.

Reimplemented in Force_F_Clover_Nf2_Isochemical, Force_F_Wilson_Nf2_Isochemical, and Force_F_Smeared.

Definition at line 49 of file force.h.

void Force::set_parameter_verboselevel ( const Bridge::VerboseLevel  vl)
inline

Definition at line 44 of file force.h.

virtual void Force::set_parameters ( const Parameters &  )
pure virtual

Implemented in Force_F_Clover_SF, Force_F_Clover_Nf2_Isochemical, Force_F_Wilson_eo, Force_F_Clover_Nf2, Force_F_Overlap_Nf2, Force_F_CloverTerm, Force_F_TMWilson_Nf2, Force_F_Wilson_Nf2_Isochemical, Force_F_Wilson_SF, Force_F_Wilson_Nf2, Force_F_Domainwall, Force_F_Rational, Force_F_Staggered_eo, and Force_F_Smeared.

Member Data Documentation

Bridge::VerboseLevel Force::m_vl
protected

Definition at line 61 of file force.h.

The documentation for this class was generated from the following file:
