Action Class Reference

Base class of HMC action class family. More...

#include <action.h>

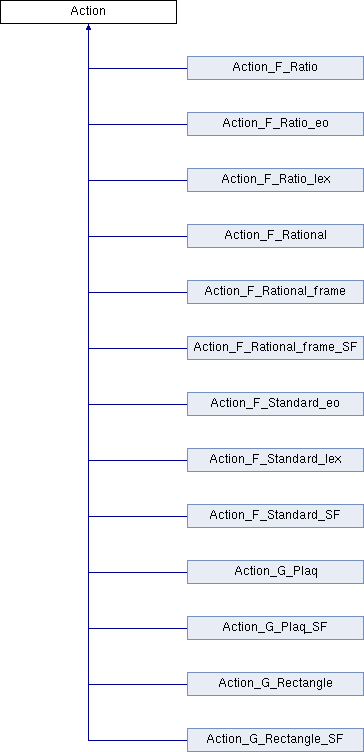

Inheritance diagram for Action:

Public Member Functions
	Action ()
virtual	~Action ()
virtual void	set_parameters (const Parameters &param)=0
void	set_parameter_verboselevel (const Bridge::VerboseLevel vl)
virtual void	set_config (Field *U)=0
	setting pointer to the gauge configuration. More...
virtual double	langevin (RandomNumbers *)=0
	Langevis step. More...
virtual double	calcH ()=0
	calculate Hamiltonian of this action term. More...
virtual void	force (Field &)=0
	returns force for molcular dynamical update of conjugate momenta. More...
virtual void	force (Field &v, Field *U)

Protected Attributes
Bridge::VerboseLevel	m_vl

Private Member Functions
	Action (const Action &)
Action &	operator= (const Action &)

Detailed Description

Base class of HMC action class family.

This class defines interface of Action-type classes. [28 Dec 2011 H.Matsufuru] Factory is introduced. [21 Mar 2015 Y.Namekawa]

Definition at line 42 of file action.h.

Constructor & Destructor Documentation

Action::Action ( )

inline

Definition at line 46 of file action.h.

virtual Action::~Action ( )

inlinevirtual

Definition at line 49 of file action.h.

Action::Action ( const Action &  )

private

Member Function Documentation

virtual double Action::calcH ( )

pure virtual

calculate Hamiltonian of this action term.

Implemented in Action_G_Rectangle_SF, Action_F_Rational, Action_F_Standard_SF, Action_G_Plaq_SF, Action_F_Rational_frame_SF, Action_F_Ratio, Action_F_Rational_frame, Action_F_Ratio_eo, Action_F_Ratio_lex, Action_F_Standard_lex, Action_F_Standard_eo, Action_G_Rectangle, and Action_G_Plaq.

virtual void Action::force ( Field &  )

pure virtual

returns force for molcular dynamical update of conjugate momenta.

Implemented in Action_G_Rectangle_SF, Action_F_Standard_SF, Action_G_Plaq_SF, Action_F_Rational_frame_SF, Action_F_Ratio, Action_F_Rational_frame, Action_F_Ratio_eo, Action_F_Ratio_lex, Action_F_Standard_lex, Action_F_Standard_eo, Action_G_Rectangle, and Action_G_Plaq.

virtual void Action::force ( Field &  v, Field *  U  )

inlinevirtual

Definition at line 74 of file action.h.

virtual double Action::langevin ( RandomNumbers *  )

pure virtual

Langevis step.

Implemented in Action_G_Rectangle_SF, Action_F_Rational, Action_F_Standard_SF, Action_G_Plaq_SF, Action_F_Rational_frame_SF, Action_F_Ratio, Action_F_Ratio_eo, Action_F_Ratio_lex, Action_F_Rational_frame, Action_F_Standard_lex, Action_F_Standard_eo, Action_G_Rectangle, and Action_G_Plaq.

Action& Action::operator= ( const Action &  )

private

virtual void Action::set_config ( Field *  U )

pure virtual

setting pointer to the gauge configuration.

Implemented in Action_G_Rectangle_SF, Action_F_Rational, Action_F_Standard_SF, Action_G_Plaq_SF, Action_F_Ratio_eo, Action_F_Ratio_lex, Action_F_Rational_frame_SF, Action_F_Ratio, Action_F_Rational_frame, Action_F_Standard_lex, Action_F_Standard_eo, Action_G_Rectangle, and Action_G_Plaq.

void Action::set_parameter_verboselevel ( const Bridge::VerboseLevel  vl )

inline

Definition at line 59 of file action.h.

virtual void Action::set_parameters ( const Parameters &  param )

pure virtual

Implemented in Action_G_Rectangle_SF, Action_F_Standard_SF, Action_G_Plaq_SF, Action_F_Rational, Action_F_Ratio_eo, Action_F_Ratio_lex, Action_F_Rational_frame_SF, Action_F_Ratio, Action_F_Rational_frame, Action_F_Standard_lex, Action_F_Standard_eo, Action_G_Rectangle, and Action_G_Plaq.

Member Data Documentation

Bridge::VerboseLevel Action::m_vl

protected

Definition at line 81 of file action.h.

---

The documentation for this class was generated from the following file:

• /work/sueda3/svn/bridge/branches/release/version1.3/src/Action/action.h
