Bridge++  Ver. 1.3.x
Public Member Functions | Protected Attributes | Private Member Functions | List of all members
Fopr Class Referenceabstract

Base class of fermion operator family. More...

#include <fopr.h>

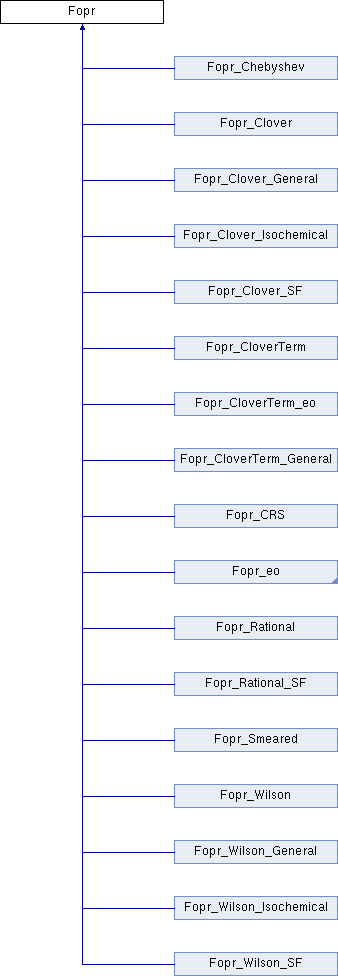

Inheritance diagram for Fopr:
Fopr_Chebyshev Fopr_Clover Fopr_Clover_General Fopr_Clover_Isochemical Fopr_Clover_SF Fopr_CloverTerm Fopr_CloverTerm_eo Fopr_CloverTerm_General Fopr_CRS Fopr_eo Fopr_Rational Fopr_Rational_SF Fopr_Smeared Fopr_Wilson Fopr_Wilson_General Fopr_Wilson_Isochemical Fopr_Wilson_SF

Public Member Functions

 Fopr ()

virtual ~Fopr ()

virtual void set_parameters (const Parameters &)=0

void set_parameter_verboselevel (const Bridge::VerboseLevel vl)

virtual void set_config (Field *)=0
 setting pointer to the gauge configuration. More...

virtual void set_config (unique_ptr< Field_G > &)=0

virtual void mult (Field &, const Field &)=0
 multiplies fermion operator to a given field (2nd argument) More...

virtual void mult_dag (Field &, const Field &)
 hermitian conjugate of mult(Field&, const Field&). More...

virtual void mult_up (int mu, Field &, const Field &)
 nearest neighbor hopping term: temporary entry [H.Matsufuru] More...

virtual void mult_dn (int mu, Field &, const Field &)

virtual void set_mode (std::string mode)
 setting the mode of multiplication if necessary. Default implementation here is just to avoid irrelevant call. More...

virtual std::string get_mode () const
 only for Fopr_Overlap More...

virtual int field_nvol ()=0
 returns the volume for which the fermion operator is defined. More...

virtual int field_nin ()=0
 returns the on-site d.o.f. for which the fermion operator is defined. More...

virtual int field_nex ()=0
 returns the external d.o.f. for which the fermion operator is defined. More...

virtual double flop_count ()
 returns the flops per site. More...


Protected Attributes

Bridge::VerboseLevel m_vl


Private Member Functions

 Fopr (const Fopr &)

Fopr & operator= (const Fopr &)


Detailed Description

Base class of fermion operator family.

In Bridge-OF, the fermion operator implies an operator which transforms a field to other field, irrespective of physical formulation. This class defines the interface of the fermion operators. At present, void functions mult(v,w) and mult_dag(v,w) is not purely virtual, because some of subclass have not implemented them yet. [20 Dec 2011 H.Matsufuru] unique_ptr is introduced to avoid memory leaks. [21 Mar 2015 Y.Namekawa] parameters factory is introduced. [21 Apr 2015 Y.Namekawa]

Definition at line 49 of file fopr.h.

Constructor & Destructor Documentation

Fopr::Fopr ( )
inline

Definition at line 53 of file fopr.h.

virtual Fopr::~Fopr ( )
inlinevirtual

Definition at line 56 of file fopr.h.

Fopr::Fopr ( const Fopr &  )
private

Member Function Documentation

virtual int Fopr::field_nex ( )
pure virtual

returns the external d.o.f. for which the fermion operator is defined.

Implemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_Clover_General, Fopr_Clover, Fopr_Wilson_eo, Fopr_Clover_eo, Fopr_Clover_SF, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_CloverTerm, Fopr_CloverTerm_General, Fopr_CRS, Fopr_Smeared_eo, Fopr_Rational_SF, Fopr_Wilson, Fopr_Rational, Fopr_Smeared, Fopr_Wilson_General, Fopr_Chebyshev, and Fopr_eo.

virtual int Fopr::field_nin ( )
pure virtual

returns the on-site d.o.f. for which the fermion operator is defined.

Implemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_Clover_General, Fopr_Clover, Fopr_Wilson_eo, Fopr_Clover_eo, Fopr_Clover_SF, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_CloverTerm, Fopr_CloverTerm_General, Fopr_CRS, Fopr_Smeared_eo, Fopr_Rational_SF, Fopr_Wilson, Fopr_Rational, Fopr_Smeared, Fopr_Wilson_General, Fopr_Chebyshev, and Fopr_eo.

virtual int Fopr::field_nvol ( )
pure virtual

returns the volume for which the fermion operator is defined.

Implemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_Clover_General, Fopr_Clover, Fopr_Wilson_eo, Fopr_Clover_eo, Fopr_Clover_SF, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_CloverTerm, Fopr_CloverTerm_General, Fopr_CRS, Fopr_Smeared_eo, Fopr_Rational_SF, Fopr_Rational, Fopr_Wilson, Fopr_Smeared, Fopr_Wilson_General, Fopr_Chebyshev, and Fopr_eo.

virtual double Fopr::flop_count ( )
inlinevirtual

returns the flops per site.

Reimplemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_Clover_General, Fopr_Clover, Fopr_Clover_eo, Fopr_Clover_SF, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_Wilson_eo, Fopr_CloverTerm, Fopr_CloverTerm_General, Fopr_Wilson, and Fopr_Wilson_General.

Definition at line 110 of file fopr.h.

virtual std::string Fopr::get_mode ( ) const
inlinevirtual

only for Fopr_Overlap

Reimplemented in Fopr_Wilson_SF, Fopr_Wilson_eo, Fopr_CloverTerm_eo, Fopr_Wilson_Isochemical, Fopr_Clover_eo, Fopr_Clover_SF, Fopr_Clover_General, Fopr_CloverTerm, Fopr_Clover, Fopr_CloverTerm_General, Fopr_Smeared_eo, Fopr_Clover_Isochemical, Fopr_CRS, Fopr_Smeared, Fopr_Wilson, Fopr_Wilson_General, and Fopr_eo.

Definition at line 94 of file fopr.h.

virtual void Fopr::mult ( Field &  ,
const Field &
)
pure virtual

multiplies fermion operator to a given field (2nd argument)

Implemented in Fopr_CloverTerm_eo, Fopr_Clover_eo, Fopr_Wilson_SF, Fopr_Clover_SF, Fopr_Clover_General, Fopr_CloverTerm, Fopr_Clover, Fopr_CloverTerm_General, Fopr_Wilson_eo, Fopr_Clover_Isochemical, Fopr_CRS, Fopr_Wilson_Isochemical, Fopr_Rational_SF, Fopr_Rational, Fopr_Smeared_eo, Fopr_Wilson, Fopr_Chebyshev, Fopr_Wilson_General, Fopr_Smeared, and Fopr_eo.

virtual void Fopr::mult_dag ( Field &  ,
const Field &
)
inlinevirtual

hermitian conjugate of mult(Field&, const Field&).

Reimplemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_Clover_General, Fopr_Clover_SF, Fopr_Clover, Fopr_Clover_eo, Fopr_CloverTerm, Fopr_CloverTerm_General, Fopr_Clover_Isochemical, Fopr_CRS, Fopr_Wilson_eo, Fopr_Wilson_Isochemical, Fopr_Rational_SF, Fopr_Rational, Fopr_Smeared_eo, Fopr_Wilson, Fopr_Chebyshev, Fopr_Smeared, Fopr_Wilson_General, and Fopr_eo.

Definition at line 77 of file fopr.h.

virtual void Fopr::mult_dn ( int  mu,
Field &  ,
const Field &
)
inlinevirtual

Reimplemented in Fopr_Clover_General, Fopr_Clover, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_Smeared_eo, Fopr_Wilson, Fopr_Smeared, and Fopr_Wilson_General.

Definition at line 81 of file fopr.h.

virtual void Fopr::mult_up ( int  mu,
Field &  ,
const Field &
)
inlinevirtual

nearest neighbor hopping term: temporary entry [H.Matsufuru]

Reimplemented in Fopr_Clover_General, Fopr_Clover, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_Smeared_eo, Fopr_Wilson, Fopr_Wilson_General, and Fopr_Smeared.

Definition at line 80 of file fopr.h.

Fopr& Fopr::operator= ( const Fopr &  )
private
virtual void Fopr::set_config ( Field *  )
pure virtual

setting pointer to the gauge configuration.

Implemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_CloverTerm, Fopr_Clover_General, Fopr_Clover_SF, Fopr_CloverTerm_General, Fopr_Wilson_eo, Fopr_Clover, Fopr_Clover_eo, Fopr_Wilson_Isochemical, Fopr_Clover_Isochemical, Fopr_Rational_SF, Fopr_Rational, Fopr_Smeared_eo, Fopr_CRS, Fopr_Wilson, Fopr_Chebyshev, Fopr_Wilson_General, Fopr_Smeared, and Fopr_eo.

virtual void Fopr::set_config ( unique_ptr< Field_G > &  )
pure virtual

Implemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_Clover_SF, Fopr_Clover_General, Fopr_CloverTerm, Fopr_CloverTerm_General, Fopr_Clover, Fopr_Wilson_eo, Fopr_Wilson_Isochemical, Fopr_Clover_eo, Fopr_Rational_SF, Fopr_Clover_Isochemical, Fopr_Rational, Fopr_CRS, Fopr_Smeared_eo, Fopr_Chebyshev, Fopr_Wilson, Fopr_Wilson_General, Fopr_Smeared, and Fopr_eo.

virtual void Fopr::set_mode ( std::string  mode)
inlinevirtual

setting the mode of multiplication if necessary. Default implementation here is just to avoid irrelevant call.

Reimplemented in Fopr_Wilson_SF, Fopr_CloverTerm_eo, Fopr_Wilson_eo, Fopr_Clover_SF, Fopr_Clover_General, Fopr_Wilson_Isochemical, Fopr_CloverTerm, Fopr_Clover, Fopr_CloverTerm_General, Fopr_Clover_eo, Fopr_Smeared_eo, Fopr_Clover_Isochemical, Fopr_CRS, Fopr_Smeared, Fopr_Wilson, Fopr_Wilson_General, and Fopr_eo.

Definition at line 85 of file fopr.h.

void Fopr::set_parameter_verboselevel ( const Bridge::VerboseLevel  vl)
inline

Definition at line 66 of file fopr.h.

virtual void Fopr::set_parameters ( const Parameters &  )
pure virtual

Implemented in Fopr_CloverTerm_eo, Fopr_Wilson_SF, Fopr_CloverTerm, Fopr_Clover_SF, Fopr_CloverTerm_General, Fopr_Clover_General, Fopr_Wilson_eo, Fopr_Clover, Fopr_Clover_eo, Fopr_Clover_Isochemical, Fopr_Wilson_Isochemical, Fopr_Rational_SF, Fopr_Rational, Fopr_CRS, Fopr_Wilson, Fopr_Chebyshev, Fopr_Smeared_eo, Fopr_Smeared, and Fopr_Wilson_General.

Member Data Documentation

Bridge::VerboseLevel Fopr::m_vl
protected

Definition at line 113 of file fopr.h.

The documentation for this class was generated from the following file:
