Bridge++  Ver. 1.3.x
Public Member Functions | Protected Attributes | Private Member Functions | List of all members
Solver Class Referenceabstract

Base class for linear solver class family. More...

#include <solver.h>

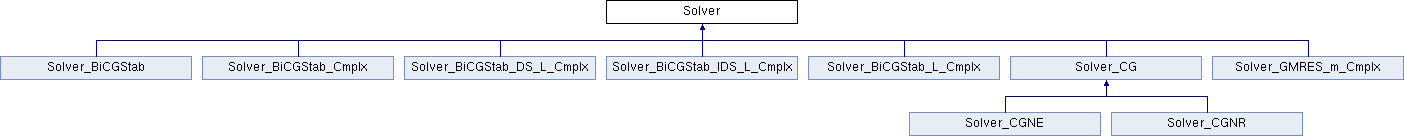

Inheritance diagram for Solver:
Solver_BiCGStab Solver_BiCGStab_Cmplx Solver_BiCGStab_DS_L_Cmplx Solver_BiCGStab_IDS_L_Cmplx Solver_BiCGStab_L_Cmplx Solver_CG Solver_GMRES_m_Cmplx Solver_CGNE Solver_CGNR

Public Member Functions

 Solver ()

virtual ~Solver ()

virtual void set_parameters (const Parameters &params)=0

virtual void set_parameters (const int Niter, const double Stop_cond)=0

void set_parameter_verboselevel (const Bridge::VerboseLevel vl)

virtual void solve (Field &solution, const Field &source, int &Nconv, double &diff)=0

virtual Fopr * get_fopr ()=0


Protected Attributes

Bridge::VerboseLevel m_vl


Private Member Functions

 Solver (const Solver &)

Solver & operator= (const Solver &)


Detailed Description

Base class for linear solver class family.

[28 Dec 2011 H.Matsufuru] unique_ptr is introduced to avoid memory leaks [21 Mar 2015 Y.Namekawa]

Definition at line 38 of file solver.h.

Constructor & Destructor Documentation

Solver::Solver ( )
inline

Definition at line 41 of file solver.h.

virtual Solver::~Solver ( )
inlinevirtual

Definition at line 44 of file solver.h.

Solver::Solver ( const Solver &  )
private

Member Function Documentation

virtual Fopr* Solver::get_fopr ( )
pure virtual

Implemented in Solver_BiCGStab_DS_L_Cmplx, Solver_BiCGStab_IDS_L_Cmplx, Solver_BiCGStab_L_Cmplx, Solver_GMRES_m_Cmplx, Solver_BiCGStab_Cmplx, Solver_BiCGStab, Solver_CG, Solver_CGNE, and Solver_CGNR.

Solver& Solver::operator= ( const Solver &  )
private
void Solver::set_parameter_verboselevel ( const Bridge::VerboseLevel  vl)
inline

Definition at line 54 of file solver.h.

virtual void Solver::set_parameters ( const Parameters &  params)
pure virtual

Implemented in Solver_BiCGStab_DS_L_Cmplx, Solver_BiCGStab_IDS_L_Cmplx, Solver_BiCGStab_L_Cmplx, Solver_GMRES_m_Cmplx, Solver_BiCGStab_Cmplx, Solver_BiCGStab, Solver_CG, Solver_CGNE, and Solver_CGNR.

virtual void Solver::set_parameters ( const int  Niter,
const double  Stop_cond
)
pure virtual

Implemented in Solver_BiCGStab_DS_L_Cmplx, Solver_BiCGStab_IDS_L_Cmplx, Solver_BiCGStab_L_Cmplx, Solver_GMRES_m_Cmplx, Solver_BiCGStab_Cmplx, Solver_BiCGStab, and Solver_CG.

virtual void Solver::solve ( Field &  solution,
const Field &  source,
int &  Nconv,
double &  diff
)
pure virtual

Implemented in Solver_BiCGStab_DS_L_Cmplx, Solver_BiCGStab_IDS_L_Cmplx, Solver_BiCGStab_L_Cmplx, Solver_GMRES_m_Cmplx, Solver_BiCGStab_Cmplx, Solver_BiCGStab, Solver_CG, Solver_CGNE, and Solver_CGNR.

Member Data Documentation

Bridge::VerboseLevel Solver::m_vl
protected

Definition at line 62 of file solver.h.

The documentation for this class was generated from the following file:
